The Airborne Modular Intercom (AMI) System has been designed for installation into aircraft that require an expanded intercom and radio communication capability. The AMI System offers a seamless interface to an existing aircraft’s intercom and radio system. The Intercom Controllers are connected by a two-wire data bus, minimising aircraft wiring and ancillary equipment. The end result of the design offers a highly configurable aircraft system that can be easily re-configurable to meet customer requirements. This system is installed on the Customs Australia Dash 8 fleet.
Features+ -
Typical Configuration:
- 10 Transceivers individually selectable
- 6 Receiver only inputs available
- Number of Tx and Rx Channels can be configured to the user’s requirements
- Mic VOX or Key Operation at each Station – selectable on Station Controller
- Multiple ICS Modes – Hot/Key/VOX
- Call function available at each Station (with audible and visual alert)
- Volume control at each Station Controller
- Multiple Intercom Groups – selectable at each Station Controller
- Up to 8 Stations (controllers) available – configurable by slide in boards in the Processor
- Unit and software programming
- Number of Stations can be configured to the user’s requirements
- Annunciators on each Station Controller indicate transceiver in use
- Auxiliary phones and mic available at each Station
- Dual redundant Power Supply and Processor available on request
- Balanced audio, transformer isolated
- Operates on a two wire RS485 data bus – reduces installation wiring, time and
- expense
- Designed but not tested to RTCA DO-160D and DO-178C
- Power Requirements 28 VDC
Controller+ -

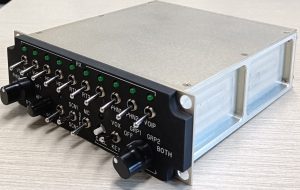

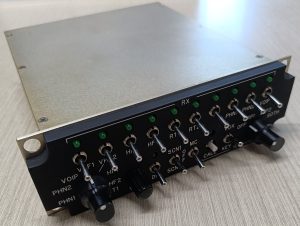

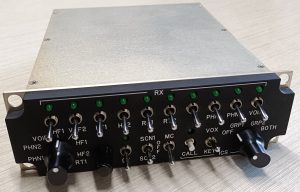

- 5 ATI, DZUS Mounted Unit (complies with MS25212 for Aircraft Control Panel Dimensions)
- Corrosion resistant black anodised chassis
- Backlit Front Panel – 5 or 28 Volts
- Excellent viewing angles for Front Panel annunciators
- Front Panel colour available in Black or Grey
- Utilises one single MS bayonet circular connector
- Weight 1.3lbs
Intercom Processor Unit+ -

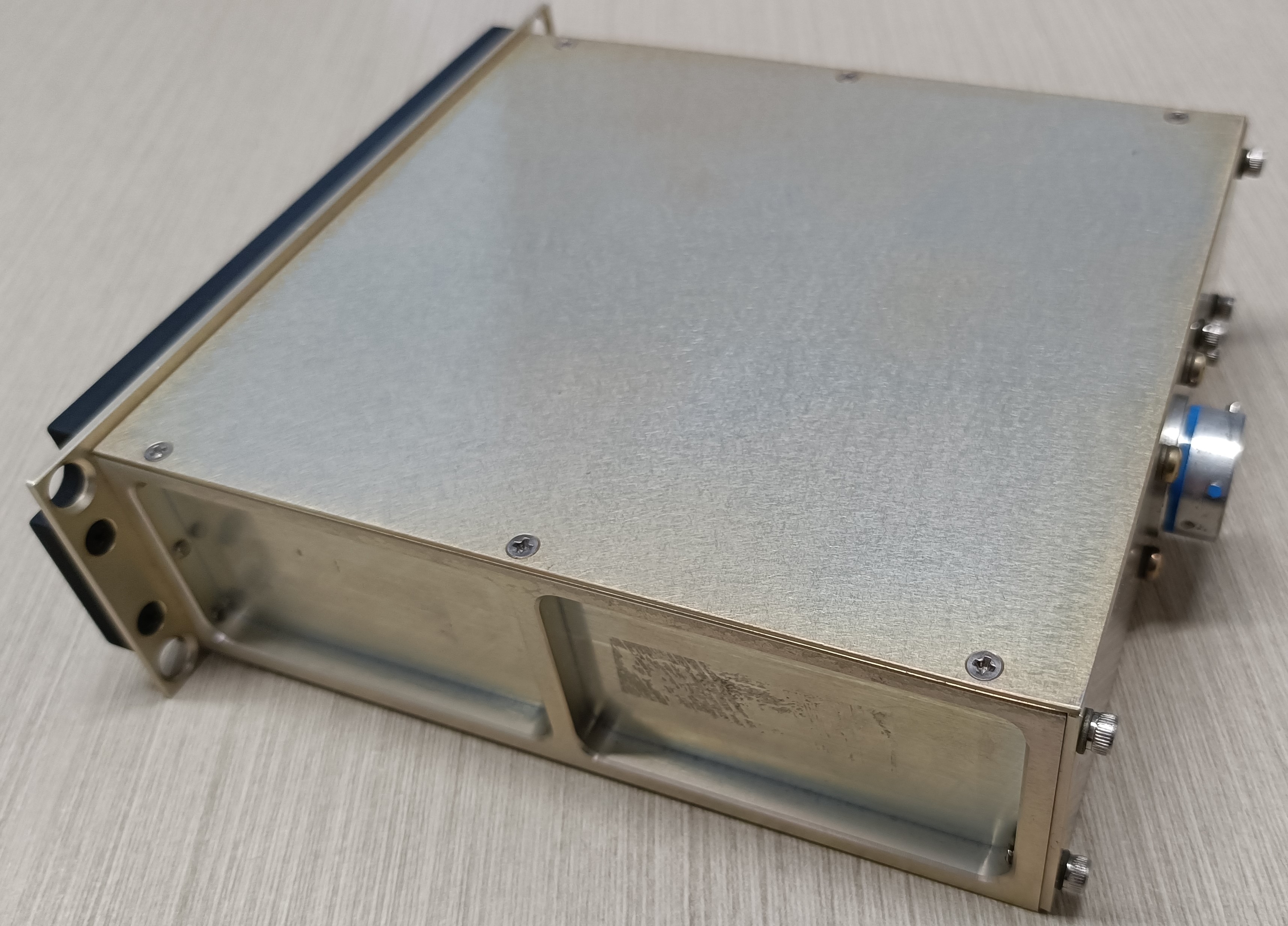

- 3/8 ATR Rack Mounted Unit
- Corrosion resistant black anodised chassis
- Plug-in circuit cards for ease of system conguration and maintenance
- Utilises MS bayonet circular connectors
- Weight 8lbs
